IT'S ALL IN THE DETAILS

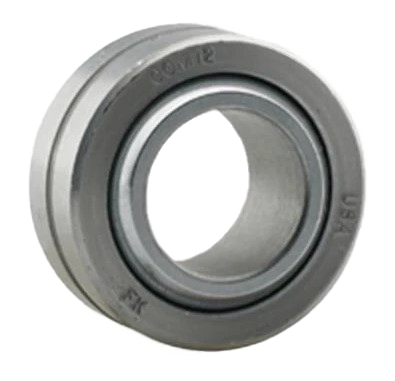

FK COM/COMH series spherical bearings are part of their commercial series. Precision-made from quality materials, these bearings are tough and reliable to handle your stressed applications.
COM/COMH Series offers:
* 52100 heat-treated steel with hard chrome plate ball
* Low-carbon steel and oil coated race
* PTFE Liners Standard
Receiver Race Diameter (in.): 1.1875 in.
Race Width (in.): 0.500 in.
Inner Ball Width (in.): 0.625 in.
Inner Ball Diameter (in.): 0.6250 in.
Rod End Ball Diameter (in.): 0.968 in.
Chamfer Reference: 0.032 in.
Rod End Misalign Angle (degrees): 8.5 degrees
ULT. Static Radial Load (lbs.): 21,280 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
Notes: Bearing has a PTFE liner.
